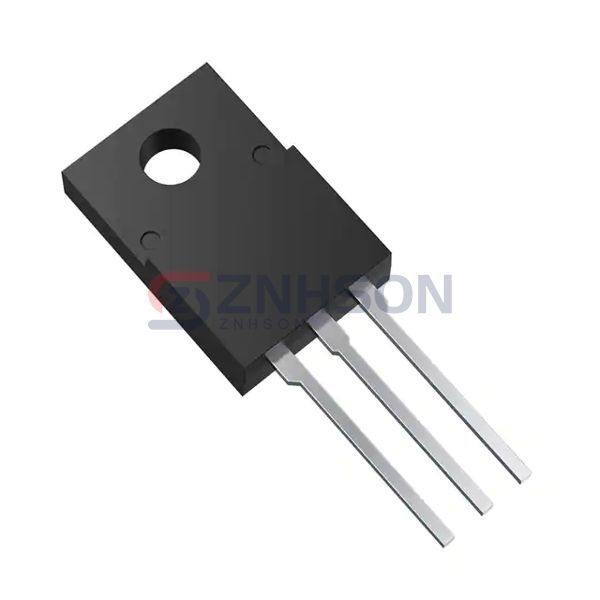

TK56A12N1,S4X
Toshiba Semiconductor and Storage
Toshiba Semiconductor and Storage
MOSFET N-CH 120V 56A TO220SIS
$2.19
Available to order
Reference Price (USD)
1+
$2.09000
50+
$1.68760
100+
$1.51880
500+
$1.18126
1,000+
$0.97875
2,500+
$0.94500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The TK56A12N1,S4X single MOSFET from Toshiba Semiconductor and Storage is a game-changer in power electronics. As part of the Discrete Semiconductor Products family, it offers unparalleled efficiency in energy conversion and management. Key applications include uninterruptible power supplies (UPS), welding equipment, and industrial motor drives. With features like high temperature operation and ESD protection, the TK56A12N1,S4X is a must-have in the Transistors - FETs, MOSFETs - Single category.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 120 V
- Current - Continuous Drain (Id) @ 25°C: 56A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 7.5mOhm @ 28A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: 69 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4200 pF @ 60 V
- FET Feature: -
- Power Dissipation (Max): 45W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-220SIS
- Package / Case: TO-220-3 Full Pack
Related Products
onsemi
FDN361BN
Alpha & Omega Semiconductor Inc.
AOSS32136C
onsemi
NDD60N900U1T4G
IXYS
IXTN22N100L
Diodes Incorporated
DMP3028LFDE-13
Vishay Siliconix
SIHD6N65ET5-GE3
Vishay Siliconix

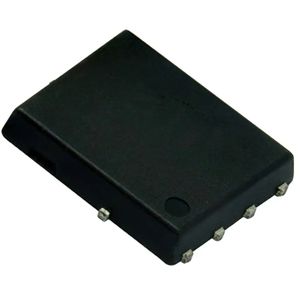

SIR586DP-T1-RE3
