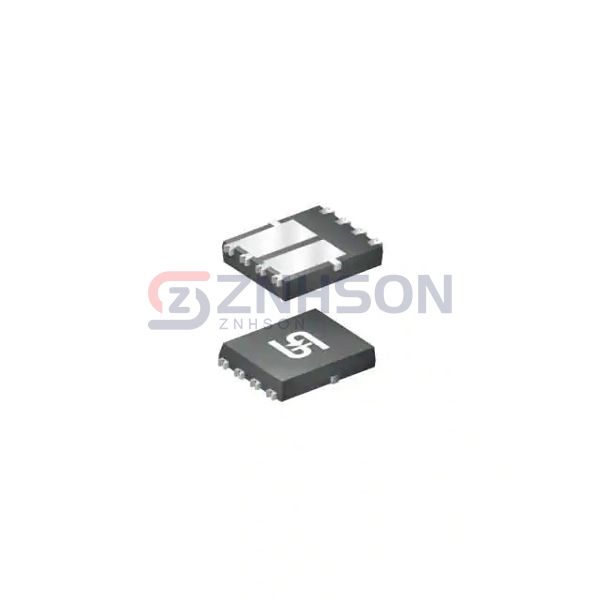

TSM076NH04DCR RLG
Taiwan Semiconductor Corporation
Taiwan Semiconductor Corporation
40V, 34A, DUAL N-CHANNEL POWER M
$2.64
Available to order
Reference Price (USD)
1+
$2.64000
500+
$2.6136
1000+
$2.5872
1500+
$2.5608
2000+
$2.5344
2500+
$2.508
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the TSM076NH04DCR RLG by Taiwan Semiconductor Corporation, a standout in the Discrete Semiconductor Products category. Specifically designed as a Transistors - FETs, MOSFETs - Arrays solution, this component excels in high-frequency applications with its low on-resistance and fast switching capabilities. Perfect for use in power supplies, motor control, and LED lighting systems, the TSM076NH04DCR RLG ensures energy efficiency and robust performance. Taiwan Semiconductor Corporation's commitment to quality makes this MOSFET array a top choice for engineers and designers worldwide.
Specifications
- Product Status: Active
- FET Type: 2 N-Channel (Dual)
- FET Feature: Standard
- Drain to Source Voltage (Vdss): 40V
- Current - Continuous Drain (Id) @ 25°C: 14A (Ta), 34A (Tc)
- Rds On (Max) @ Id, Vgs: 7.6mOhm @ 17A, 10V
- Vgs(th) (Max) @ Id: 3.6V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 19nC @ 10V
- Input Capacitance (Ciss) (Max) @ Vds: 1217pF @ 25V
- Power - Max: 55.6W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 8-PowerTDFN
- Supplier Device Package: 8-PDFNU (5x6)
