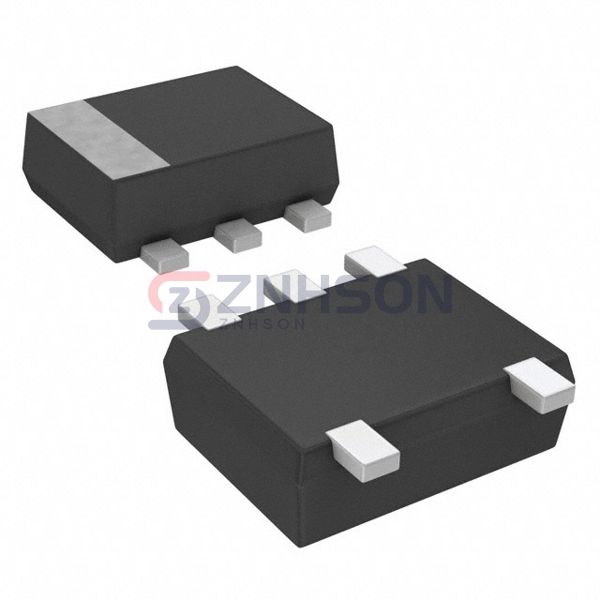

UP0121M00L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS DUAL NPN SSMINI5
$0.26
Available to order
Reference Price (USD)
8,000+
$0.19127
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of Panasonic Electronic Components's UP0121M00L, a pre-biased BJT array tailored for modern electronics. This transistor array combines high current gain with low saturation voltage, making it ideal for switching and linear amplification. Its compact design and integrated resistors save PCB space while enhancing reliability. The UP0121M00L is widely used in IoT devices, medical equipment, and renewable energy systems. Panasonic Electronic Components's advanced fabrication techniques guarantee consistent performance, even under high-stress conditions. Whether for prototyping or mass production, the UP0121M00L offers a cost-effective solution for your semiconductor needs.
Specifications
- Product Status: Obsolete
- Transistor Type: 2 NPN - Pre-Biased (Dual)
- Current - Collector (Ic) (Max): 100mA
- Voltage - Collector Emitter Breakdown (Max): 50V
- Resistor - Base (R1): 2.2kOhms
- Resistor - Emitter Base (R2): 47kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 80 @ 5mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 250mV @ 300µA, 10mA
- Current - Collector Cutoff (Max): 500nA
- Frequency - Transition: 150MHz
- Power - Max: 125mW
- Mounting Type: Surface Mount
- Package / Case: SOT-665
- Supplier Device Package: SSMini5-F2
