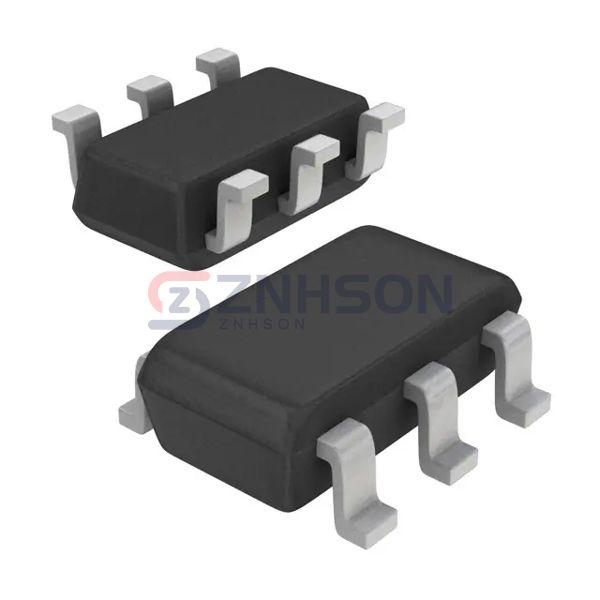

ZXMN2A01E6TA
Diodes Incorporated
Diodes Incorporated
MOSFET N-CH 20V 2.5A SOT23-6
$0.63
Available to order
Reference Price (USD)
3,000+
$0.27623
6,000+
$0.26028
15,000+
$0.24433
30,000+
$0.23316
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZXMN2A01E6TA by Diodes Incorporated is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the ZXMN2A01E6TA is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 20 V
- Current - Continuous Drain (Id) @ 25°C: 2.5A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 4.5V
- Rds On (Max) @ Id, Vgs: 120mOhm @ 4A, 4.5V
- Vgs(th) (Max) @ Id: 700mV @ 250µA (Min)
- Gate Charge (Qg) (Max) @ Vgs: 3 nC @ 4.5 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 303 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 1.1W (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SOT-23-6
- Package / Case: SOT-23-6
Related Products
Vishay Siliconix
IRFI720GPBF
onsemi
NTLUS3192PZTAG
STMicroelectronics
STP26NM60N
Infineon Technologies
IAUC80N04S6N036ATMA1
Infineon Technologies
IPW65R070C6FKSA1
Infineon Technologies
IPP070N08N3G
NXP USA Inc.
BUK761R6-40E,118
Toshiba Semiconductor and Storage
SSM6J422TU,LF
Taiwan Semiconductor Corporation

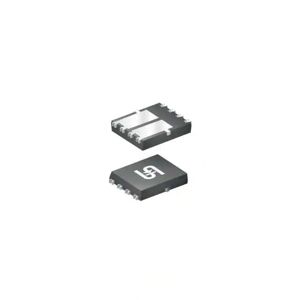

TSM043NH04LCR RLG
