APT20GN60BDQ1G
Microchip Technology
Microchip Technology
IGBT 600V 40A 136W TO247
$3.42
Available to order
Reference Price (USD)
150+
$3.66660
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT20GN60BDQ1G by Microchip Technology is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Microchip Technology's reputation for quality, the APT20GN60BDQ1G is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 60 A
- Vce(on) (Max) @ Vge, Ic: 1.9V @ 15V, 20A
- Power - Max: 136 W
- Switching Energy: 230µJ (on), 580µJ (off)
- Input Type: Standard
- Gate Charge: 120 nC
- Td (on/off) @ 25°C: 9ns/140ns
- Test Condition: 400V, 20A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247 [B]
Related Products
STMicroelectronics
STGD6NC60HDT4
STMicroelectronics
STGW40H60DLFB
Infineon Technologies
IRGB4610DPBF
Rohm Semiconductor

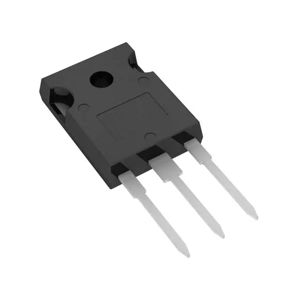

RGTVX6TS65DGC11
Alpha & Omega Semiconductor Inc.

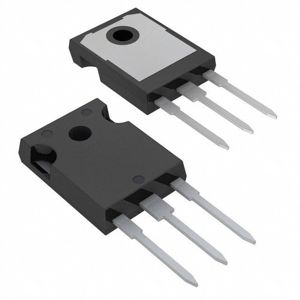

AOK40B60D
Fairchild Semiconductor
HGT1S7N60A4DS
Infineon Technologies
IGW60T120FKSA1
IXYS
IXXH30N60B3D1
Rohm Semiconductor

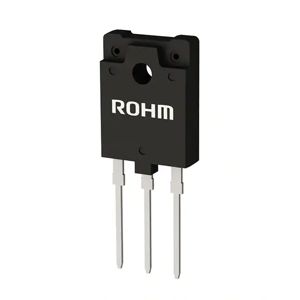

RGCL80TK60DGC11
