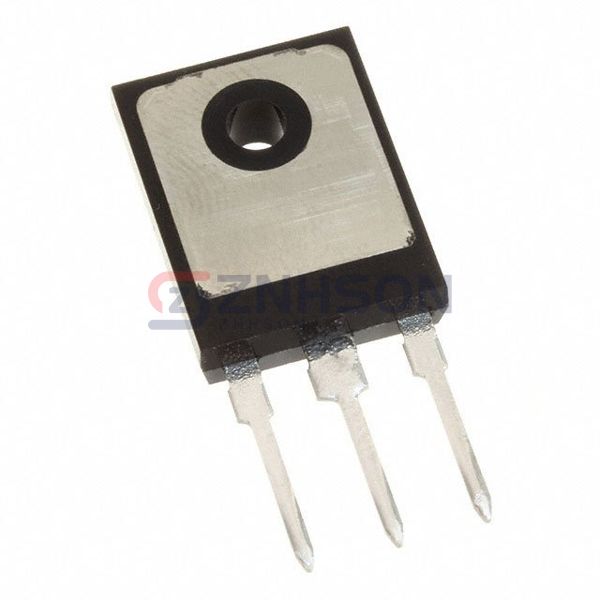

IGW40N60TPXKSA1
Infineon Technologies
Infineon Technologies
IGBT TRENCH/FS 600V 67A TO247-3
$3.25
Available to order
Reference Price (USD)
240+
$3.34171
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IGW40N60TPXKSA1 by Infineon Technologies is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Infineon Technologies's reputation for quality, the IGW40N60TPXKSA1 is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Not For New Designs
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 67 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 40A
- Power - Max: 246 W
- Switching Energy: 1.06mJ (on), 610µJ (off)
- Input Type: Standard
- Gate Charge: 177 nC
- Td (on/off) @ 25°C: 18ns/222ns
- Test Condition: 400V, 40A, 10.1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3
Related Products
IXYS
IXYK100N65B3D1
STMicroelectronics
STGD3HF60HDT4
Harris Corporation
HGTG40N60B3
Rohm Semiconductor
RGW00TS65DGC11
Fairchild Semiconductor
ISL9V2040S3ST
IXYS

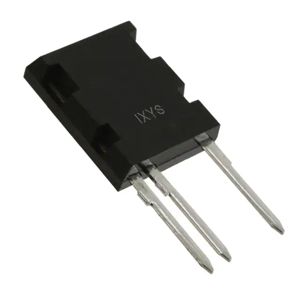

IXBL64N250
Infineon Technologies
IKW30N65ES5XKSA1
Renesas Electronics America Inc
RJH60F0DPK-00#T0
Infineon Technologies

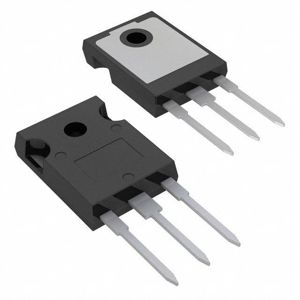

IRG4PH40UDPBF
