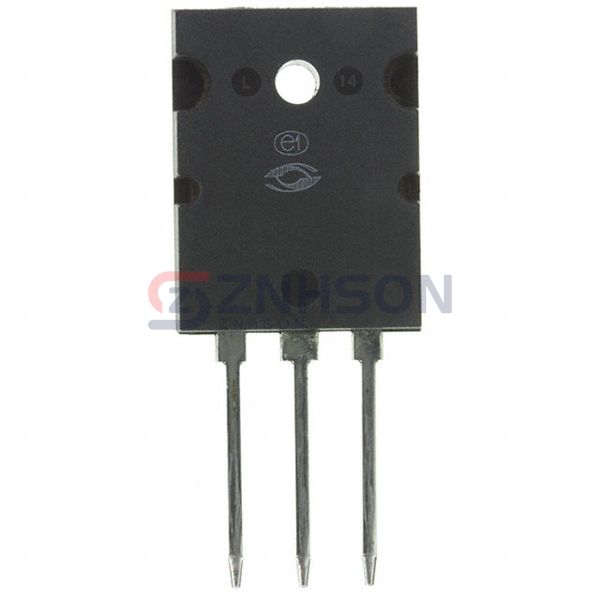

APT80GA90LD40
Microchip Technology
Microchip Technology
IGBT 900V 145A 625W TO-264
$14.60
Available to order
Reference Price (USD)
37+
$13.69108
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the APT80GA90LD40 Single IGBT transistor from Microchip Technology. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the APT80GA90LD40 delivers consistent and reliable operation. Trust Microchip Technology's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 900 V
- Current - Collector (Ic) (Max): 145 A
- Current - Collector Pulsed (Icm): 239 A
- Vce(on) (Max) @ Vge, Ic: 3.1V @ 15V, 47A
- Power - Max: 625 W
- Switching Energy: 1652µJ (on), 1389µJ (off)
- Input Type: Standard
- Gate Charge: 200 nC
- Td (on/off) @ 25°C: 18ns/149ns
- Test Condition: 600V, 47A, 4.7Ohm, 15V
- Reverse Recovery Time (trr): 25 ns
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264
