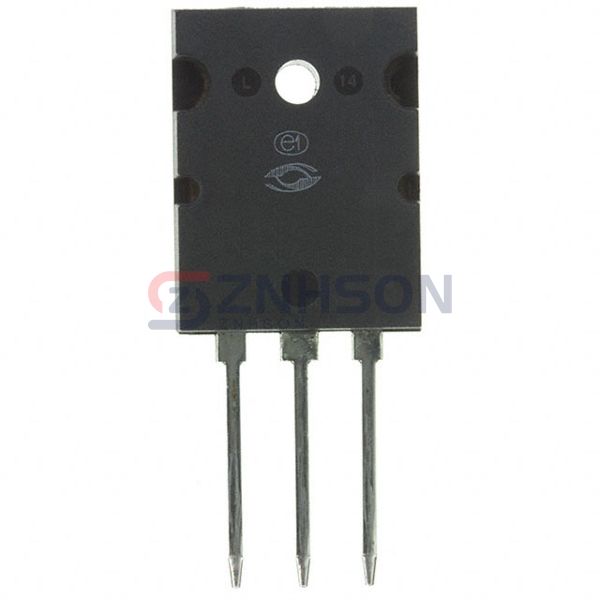

APT85GR120L
Microchip Technology
Microchip Technology
IGBT 1200V 170A 962W TO264
$15.23
Available to order
Reference Price (USD)
1+
$16.96000
10+
$15.42200
25+
$14.26560
100+
$13.10900
250+
$11.95236
500+
$11.18124
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The APT85GR120L Single IGBT transistor by Microchip Technology is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The APT85GR120L ensures precise power control and long-term stability. With Microchip Technology's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate APT85GR120L into your projects for superior results.
Specifications
- Product Status: Active
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 170 A
- Current - Collector Pulsed (Icm): 340 A
- Vce(on) (Max) @ Vge, Ic: 3.2V @ 15V, 85A
- Power - Max: 962 W
- Switching Energy: 6mJ (on), 3.8mJ (off)
- Input Type: Standard
- Gate Charge: 660 nC
- Td (on/off) @ 25°C: 43ns/300ns
- Test Condition: 600V, 85A, 4.3Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264
