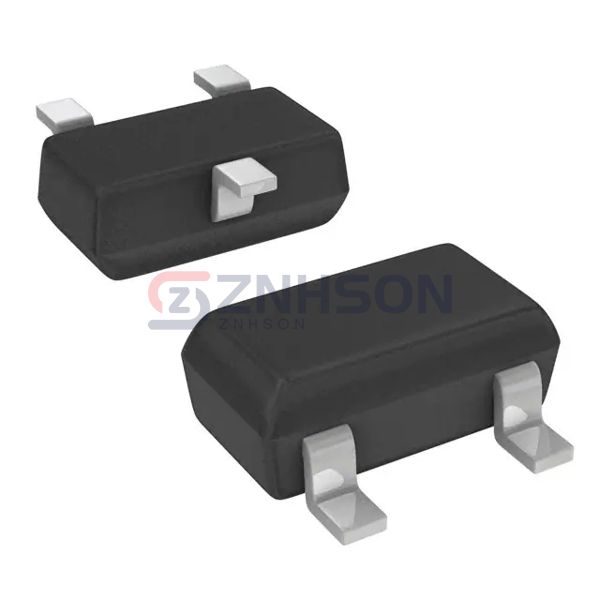

DMG3401LSN-7
Diodes Incorporated
Diodes Incorporated
MOSFET P-CH 30V 3A SC59
$0.42
Available to order
Reference Price (USD)
3,000+
$0.10632
6,000+
$0.09657
15,000+
$0.08683
30,000+
$0.08196
75,000+
$0.07367
150,000+
$0.07123
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The DMG3401LSN-7 from Diodes Incorporated sets new standards in the Transistors - FETs, MOSFETs - Single market. This Discrete Semiconductor Product delivers exceptional performance in switching regulators, class D amplifiers, and power management ICs. Featuring advanced silicon technology and robust packaging, it's built to withstand rigorous operating conditions. When quality matters, professionals turn to Diodes Incorporated's DMG3401LSN-7 for their critical applications.
Specifications
- Product Status: Active
- FET Type: P-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 30 V
- Current - Continuous Drain (Id) @ 25°C: 3A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
- Rds On (Max) @ Id, Vgs: 50mOhm @ 4A, 10V
- Vgs(th) (Max) @ Id: 1.3V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 25.1 nC @ 10 V
- Vgs (Max): ±12V
- Input Capacitance (Ciss) (Max) @ Vds: 1326 pF @ 15 V
- FET Feature: -
- Power Dissipation (Max): 800mW (Ta)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: SC-59-3
- Package / Case: TO-236-3, SC-59, SOT-23-3
