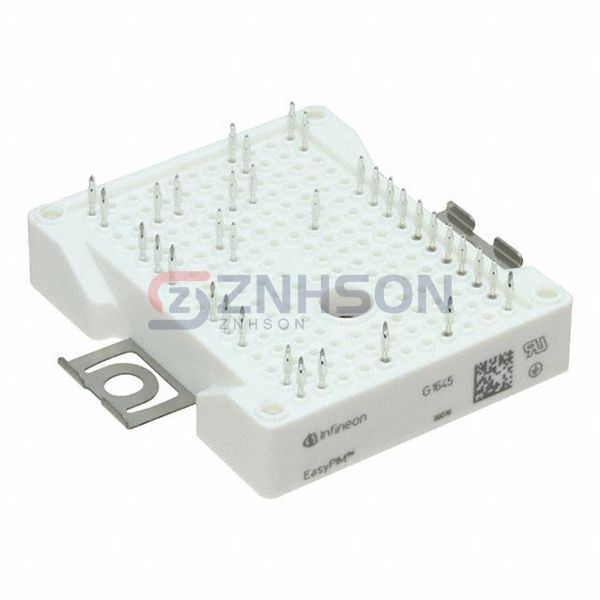

FP25R12W2T4PB11BPSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 1200V 50A 20MW
$35.89
Available to order
Reference Price (USD)
1+
$52.95000
18+
$49.39833
108+
$42.89102
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FP25R12W2T4PB11BPSA1 from Infineon Technologies exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the FP25R12W2T4PB11BPSA1 in megawatt-level wind turbine converters. With Infineon Technologies's proven track record, the FP25R12W2T4PB11BPSA1 represents the future of power semiconductor modules.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 50 A
- Power - Max: 20 mW
- Vce(on) (Max) @ Vge, Ic: 2.25V @ 15V, 25A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 1.45 nF @ 25 V
- Input: Three Phase Bridge Rectifier
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
