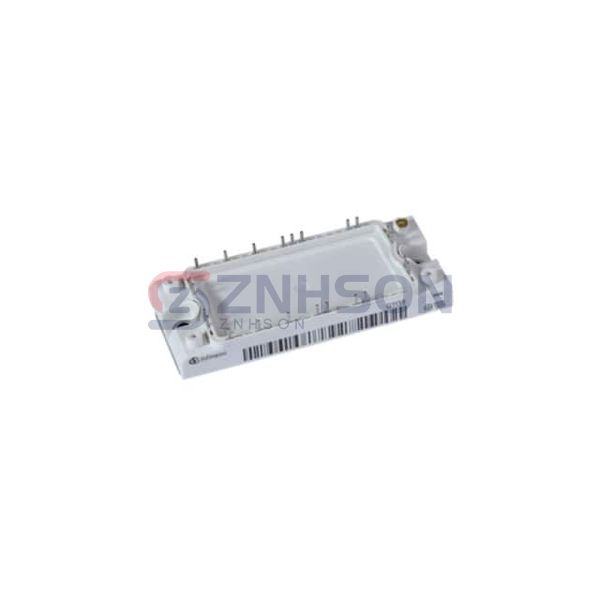

FS100R07N2E4BOSA1
Infineon Technologies
Infineon Technologies
IGBT MOD 650V 100A 335W
$0.00
Available to order
Reference Price (USD)
30+
$87.84867
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The FS100R07N2E4BOSA1 from Infineon Technologies exemplifies excellence in Transistors - IGBTs - Modules technology. This discrete semiconductor solution features a unique direct liquid cooling design for maximum power density. Technical highlights include: 200% overload capability, ultra-thin wafer technology, and short-circuit protection. The module excels in demanding applications such as electric aircraft propulsion, mining equipment, and high-speed rail systems. A typical deployment would be using the FS100R07N2E4BOSA1 in megawatt-level wind turbine converters. With Infineon Technologies's proven track record, the FS100R07N2E4BOSA1 represents the future of power semiconductor modules.
Specifications
- Product Status: Discontinued at Digi-Key
- IGBT Type: Trench Field Stop
- Configuration: Three Phase Inverter
- Voltage - Collector Emitter Breakdown (Max): 650 V
- Current - Collector (Ic) (Max): 100 A
- Power - Max: 335 W
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 100A
- Current - Collector Cutoff (Max): 1 mA
- Input Capacitance (Cies) @ Vce: 6.2 nF @ 25 V
- Input: Standard
- NTC Thermistor: Yes
- Operating Temperature: -40°C ~ 150°C
- Mounting Type: Chassis Mount
- Package / Case: Module
- Supplier Device Package: Module
Related Products
Powerex Inc.
CM300EXS-24S
IXYS
IXGN120N60A3D1
Littelfuse Inc.
MG12300D-BA1MM
STMicroelectronics
STG3P2M10N60B
Littelfuse Inc.
MG1225H-XBN2MM
Powerex Inc.
CM100DY-24NF
Microchip Technology
APT30GF60JU2
Vishay General Semiconductor - Diodes Division

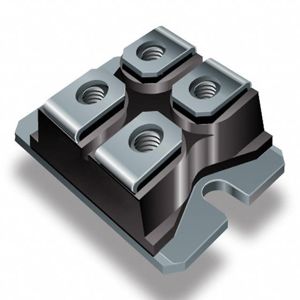

VS-GT100NA120UX
Vishay General Semiconductor - Diodes Division

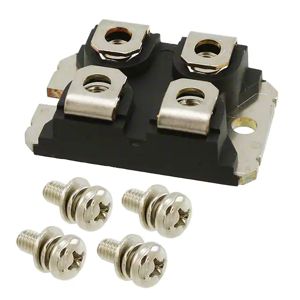

VS-GB90SA120U
