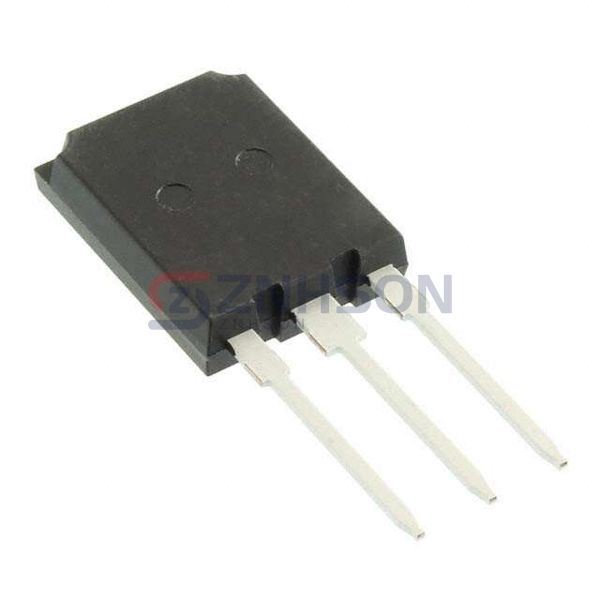

IKQ120N60TXKSA1
Infineon Technologies
Infineon Technologies
IGBT 600V 160A TO247-3-46
$13.45
Available to order
Reference Price (USD)
1+
$13.74000
10+
$12.71400
240+
$10.90721
720+
$9.82307
1,200+
$9.12040
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IKQ120N60TXKSA1 Single IGBT transistor by Infineon Technologies is a versatile component in the Discrete Semiconductor Products range. Designed for efficiency and durability, it features high voltage tolerance and minimal power dissipation. Ideal for use in automotive electronics, HVAC systems, and power tools, the IKQ120N60TXKSA1 provides consistent performance in varied conditions. Rely on Infineon Technologies's innovation to power your next-generation devices with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 160 A
- Current - Collector Pulsed (Icm): 480 A
- Vce(on) (Max) @ Vge, Ic: 2V @ 15V, 120A
- Power - Max: 833 W
- Switching Energy: 6.2mJ (on), 5.9mJ (off)
- Input Type: Standard
- Gate Charge: 703 nC
- Td (on/off) @ 25°C: 50ns/565ns
- Test Condition: 400V, 120A, 3Ohm, 15V
- Reverse Recovery Time (trr): 241 ns
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: PG-TO247-3-46
