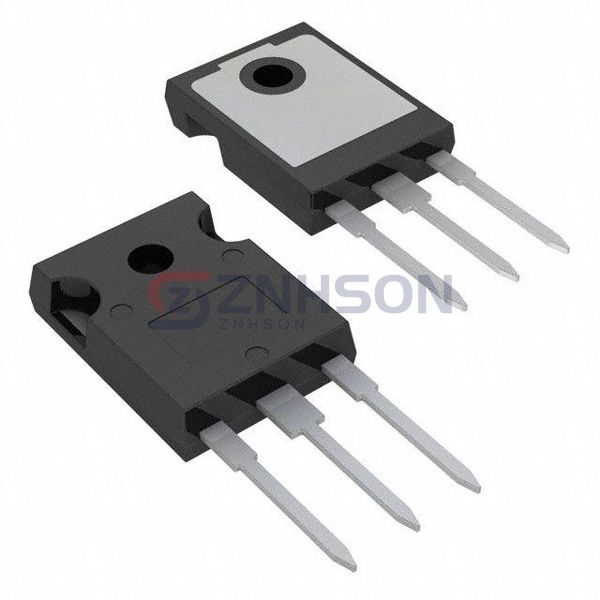

IRGPS40B120UDP
Infineon Technologies
Infineon Technologies
IGBT 1200V 80A 595W SUPER247
$6.54
Available to order
Reference Price (USD)
1+
$6.54000
500+
$6.4746
1000+
$6.4092
1500+
$6.3438
2000+
$6.2784
2500+
$6.213
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the IRGPS40B120UDP Single IGBT transistor by Infineon Technologies, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the IRGPS40B120UDP ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the IRGPS40B120UDP for unmatched power control.
Specifications
- Product Status: Obsolete
- IGBT Type: NPT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 80 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 3.7V @ 15V, 50A
- Power - Max: 595 W
- Switching Energy: 1.4mJ (on), 1.65mJ (off)
- Input Type: Standard
- Gate Charge: 340 nC
- Td (on/off) @ 25°C: -
- Test Condition: 600V, 40A, 4.7Ohm, 15V
- Reverse Recovery Time (trr): 180 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-274AA
- Supplier Device Package: SUPER-247™ (TO-274AA)
