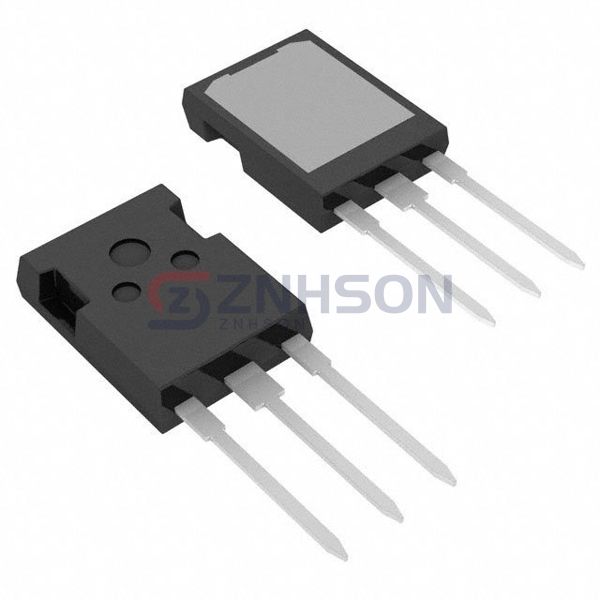

IXGX82N120A3
IXYS
IXYS
IGBT 1200V 260A 1250W PLUS247
$24.34
Available to order
Reference Price (USD)
30+
$18.11767
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGX82N120A3 from IXYS is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose IXGX82N120A3 for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 260 A
- Current - Collector Pulsed (Icm): 580 A
- Vce(on) (Max) @ Vge, Ic: 2.05V @ 15V, 82A
- Power - Max: 1250 W
- Switching Energy: 5.5mJ (on), 12.5mJ (off)
- Input Type: Standard
- Gate Charge: 340 nC
- Td (on/off) @ 25°C: 34ns/265ns
- Test Condition: 600V, 80A, 2Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
