NGTB45N60SWG
onsemi
onsemi
IGBT 600V 45A TO-247
$2.69
Available to order
Reference Price (USD)
90+
$4.65978
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the NGTB45N60SWG Single IGBT transistor by onsemi, a standout in the Discrete Semiconductor Products lineup. This component excels in high-voltage and high-current applications, featuring low conduction losses and excellent switching performance. Perfect for use in welding equipment, UPS systems, and induction heating, the NGTB45N60SWG ensures reliability and efficiency. Its rugged construction and advanced technology make it a top choice for engineers seeking durable and high-performing IGBTs. Upgrade your designs with the NGTB45N60SWG for unmatched power control.
Specifications
- Product Status: Not For New Designs
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 90 A
- Current - Collector Pulsed (Icm): 180 A
- Vce(on) (Max) @ Vge, Ic: 2.4V @ 15V, 45A
- Power - Max: 250 W
- Switching Energy: 550µJ (off)
- Input Type: Standard
- Gate Charge: 134 nC
- Td (on/off) @ 25°C: 70ns/144ns
- Test Condition: 400V, 45A, 10Ohm, 15V
- Reverse Recovery Time (trr): 376 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
Related Products
IXYS
IXYX110N120A4
Rohm Semiconductor
RGW80TS65DGC11
Infineon Technologies
IKP08N65F5XKSA1
onsemi
NGTB30N60FWG
Infineon Technologies

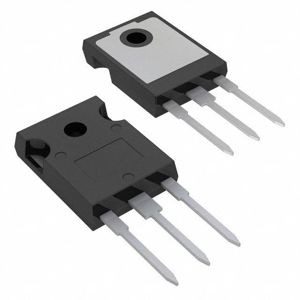

AUIRGP4062D
IXYS

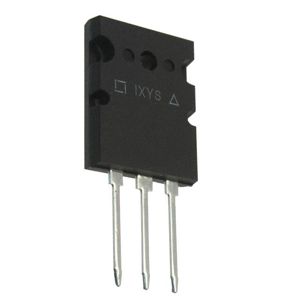

IXYK120N120C3
Rohm Semiconductor

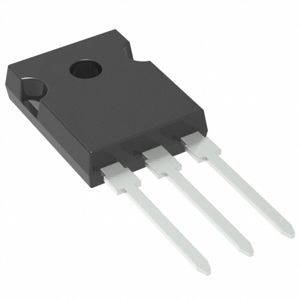

RGT80TS65DGC13
