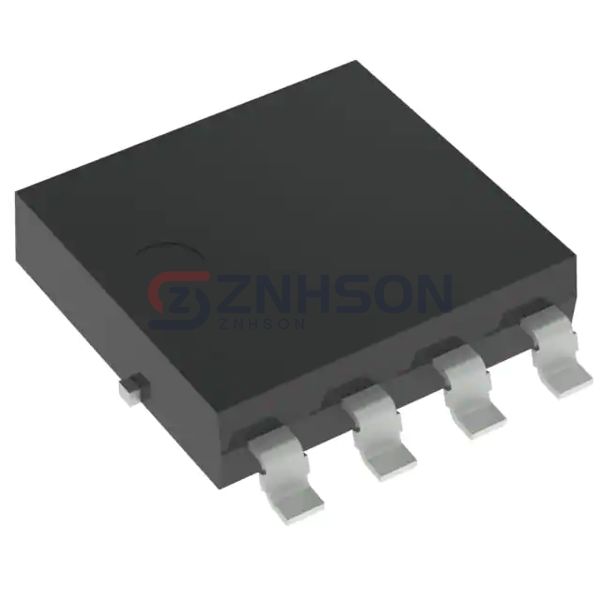

NVMJS1D5N04CLTWG
onsemi
onsemi
MOSFET N-CH 40V 38A/200A 8LFPAK
$3.08
Available to order
Reference Price (USD)
1+
$3.08000
500+
$3.0492
1000+
$3.0184
1500+
$2.9876
2000+
$2.9568
2500+
$2.926
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The NVMJS1D5N04CLTWG by onsemi is a premium single MOSFET belonging to the Transistors - FETs, MOSFETs - Single classification. Known for its robust construction and high efficiency, this component is perfect for switching and amplification tasks. Key features include low gate charge, high current capability, and superior thermal performance. Commonly used in automotive systems, industrial automation, and renewable energy solutions, the NVMJS1D5N04CLTWG is a versatile choice for engineers seeking top-tier Discrete Semiconductor Products.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 38A (Ta), 200A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
- Rds On (Max) @ Id, Vgs: 1.4mOhm @ 50A, 10V
- Vgs(th) (Max) @ Id: 2V @ 130µA
- Gate Charge (Qg) (Max) @ Vgs: 70 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4300 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 3.8W (Ta), 110W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 8-LFPAK
- Package / Case: SOT-1205, 8-LFPAK56
Related Products
Nexperia USA Inc.
BUK9Y15-100E,115
Alpha & Omega Semiconductor Inc.
AO3401
NXP Semiconductors
PSMN4R3-80PS,127
onsemi
NVTFS4C06NWFTWG
Linear Integrated Systems, Inc.

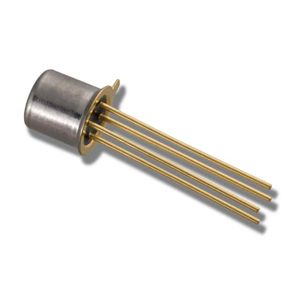

3N163 TO-72 4L
Infineon Technologies
IRL520NPBF
Infineon Technologies
BSC0502NSIATMA1
Vishay Siliconix
SUM110P04-04L-E3
STMicroelectronics

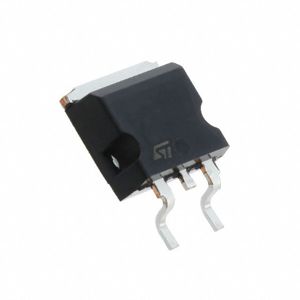

STB6N80K5
