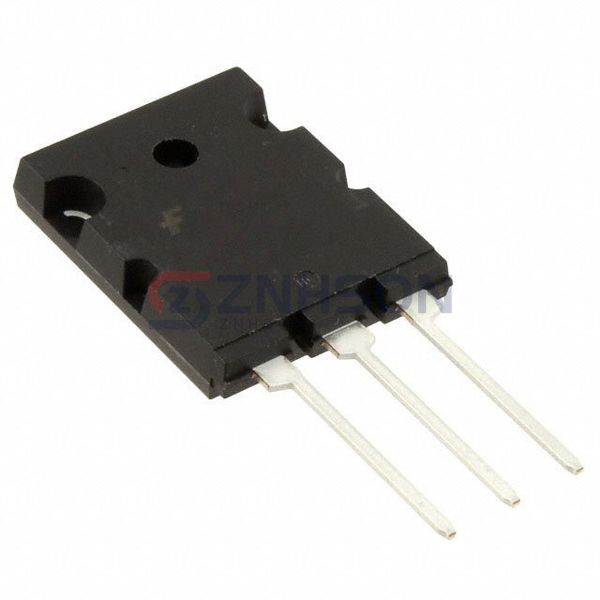

SGL40N150DTU
Fairchild Semiconductor
Fairchild Semiconductor
N-CHANNEL IGBT
$11.66
Available to order
Reference Price (USD)
1+
$11.66000
500+
$11.5434
1000+
$11.4268
1500+
$11.3102
2000+
$11.1936
2500+
$11.077
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGL40N150DTU by Fairchild Semiconductor is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With Fairchild Semiconductor's reputation for quality, the SGL40N150DTU is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 1500 V
- Current - Collector (Ic) (Max): 40 A
- Current - Collector Pulsed (Icm): 120 A
- Vce(on) (Max) @ Vge, Ic: 4.7V @ 15V, 40A
- Power - Max: 200 W
- Switching Energy: -
- Input Type: Standard
- Gate Charge: 140 nC
- Td (on/off) @ 25°C: -
- Test Condition: -
- Reverse Recovery Time (trr): 300 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: HPM F2
Related Products
Harris Corporation
IGTP10N40
Infineon Technologies
IRGS4610DPBF
Harris Corporation
HGT1S12N60C3
Fairchild Semiconductor
FGB3236-F085
onsemi
FGY75T95LQDT
Microchip Technology

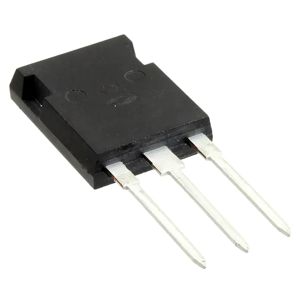

APT40GP90BG
IXYS

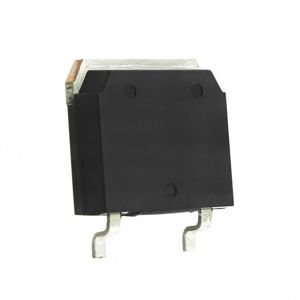

IXGT2N250
