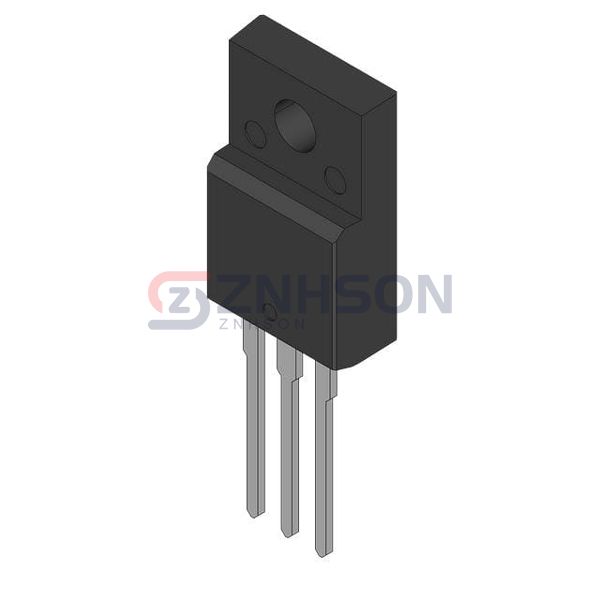

SGS10N60RUFDTU
Fairchild Semiconductor
Fairchild Semiconductor
INSULATED GATE BIPOLAR TRANSISTO
$1.41
Available to order
Reference Price (USD)
1+
$2.54000
10+
$2.28700
100+
$1.85190
500+
$1.53430
1,000+
$1.28355
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The SGS10N60RUFDTU Single IGBT transistor by Fairchild Semiconductor is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The SGS10N60RUFDTU ensures precise power control and long-term stability. With Fairchild Semiconductor's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate SGS10N60RUFDTU into your projects for superior results.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 16 A
- Current - Collector Pulsed (Icm): 30 A
- Vce(on) (Max) @ Vge, Ic: 2.8V @ 15V, 10A
- Power - Max: 55 W
- Switching Energy: 141µJ (on), 215µJ (off)
- Input Type: Standard
- Gate Charge: 30 nC
- Td (on/off) @ 25°C: 15ns/36ns
- Test Condition: 300V, 10A, 20Ohm, 15V
- Reverse Recovery Time (trr): 60 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220F-3
Related Products
Infineon Technologies
IKW40N65WR5XKSA1
Infineon Technologies
IKW25N120H3FKSA1
Rohm Semiconductor
RGTV80TS65DGC11
IXYS
IXYA30N120A4HV
Infineon Technologies
AIKW40N65DH5XKSA1
Infineon Technologies
IGW30N60TFKSA1
Microchip Technology
APT50GT120B2RDQ2G
Renesas Electronics America Inc
RJH30H2DPK-M2#T2
Infineon Technologies
IGW15N120H3FKSA1

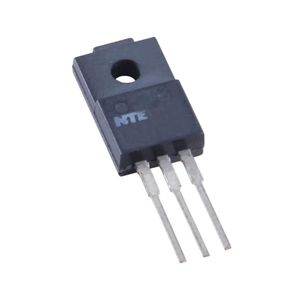

NTE Electronics, Inc
