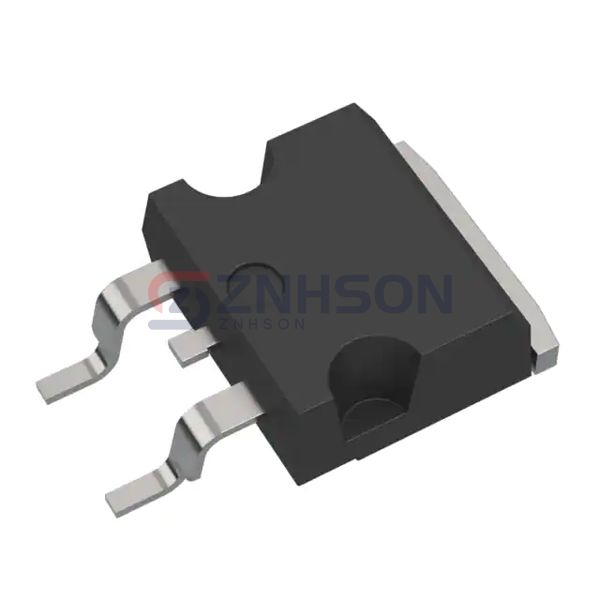

STH175N4F6-6AG
STMicroelectronics
STMicroelectronics
MOSFET N-CH 40V 120A H2PAK-2
$2.12
Available to order
Reference Price (USD)
1,000+
$1.16561
2,000+
$1.09378
5,000+
$1.05786
10,000+
$1.03827
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the STH175N4F6-6AG from STMicroelectronics, a high-performance single MOSFET designed for efficient power management in modern electronics. As part of the Discrete Semiconductor Products category, this transistor offers low on-resistance, fast switching speeds, and excellent thermal stability. Ideal for applications such as power supplies, motor control, and LED lighting, the STH175N4F6-6AG ensures reliable performance in demanding environments. Upgrade your circuit designs with STMicroelectronics's cutting-edge technology today.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 120A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 2.4mOhm @ 60A, 10V
- Vgs(th) (Max) @ Id: 4.5V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 130 nC @ 10 V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 7735 pF @ 20 V
- FET Feature: -
- Power Dissipation (Max): 150W (Tc)
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: H2Pak-2
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
