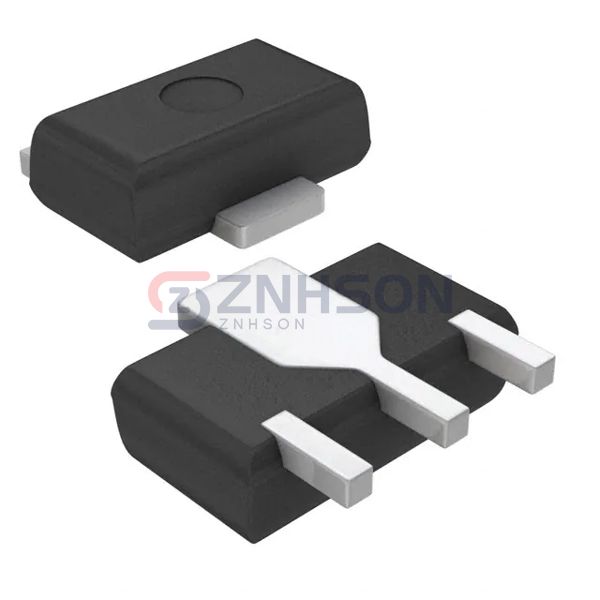

UNR723100L
Panasonic Electronic Components
Panasonic Electronic Components
TRANS PREBIAS NPN 1W MINIP3
$0.28
Available to order
Reference Price (USD)
1+
$0.28000
500+
$0.2772
1000+
$0.2744
1500+
$0.2716
2000+
$0.2688
2500+
$0.266
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layout with Panasonic Electronic Components's space-saving UNR723100L. This pre-configured bipolar transistor eliminates external biasing components while delivering 250mW power dissipation. Applications span from smart home appliances to automotive lighting systems. Panasonic Electronic Components combines 20+ years of semiconductor expertise with cutting-edge silicon technology in this robust solution.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN - Pre-Biased
- Current - Collector (Ic) (Max): 700 mA
- Voltage - Collector Emitter Breakdown (Max): 20 V
- Resistor - Base (R1): 1 kOhms
- Resistor - Emitter Base (R2): 47 kOhms
- DC Current Gain (hFE) (Min) @ Ic, Vce: 800 @ 150mA, 10V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 5mA, 500mA
- Current - Collector Cutoff (Max): 10µA
- Frequency - Transition: 55 MHz
- Power - Max: 1 W
- Mounting Type: Surface Mount
- Package / Case: TO-243AA
- Supplier Device Package: MiniP3-F1
