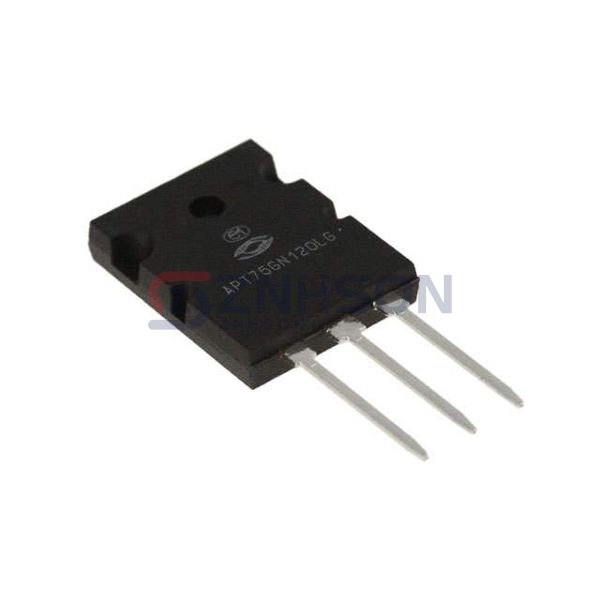

APT75GN120LG
Microchip Technology
Microchip Technology
IGBT 1200V 200A 833W TO264
$16.36
Available to order
Reference Price (USD)
1+
$17.37000
10+
$15.78700
25+
$14.60240
100+
$13.41860
250+
$12.23456
500+
$11.44524
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your power systems with the APT75GN120LG Single IGBT transistor from Microchip Technology. This Discrete Semiconductor Product is engineered for precision and efficiency, offering superior thermal performance and low EMI characteristics. Ideal for applications like electric vehicle charging stations, renewable energy systems, and industrial automation, the APT75GN120LG delivers consistent and reliable operation. Trust Microchip Technology's expertise in semiconductor technology to enhance your power management solutions with this high-quality IGBT.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 200 A
- Current - Collector Pulsed (Icm): 225 A
- Vce(on) (Max) @ Vge, Ic: 2.1V @ 15V, 75A
- Power - Max: 833 W
- Switching Energy: 8620µJ (on), 11400µJ (off)
- Input Type: Standard
- Gate Charge: 425 nC
- Td (on/off) @ 25°C: 60ns/620ns
- Test Condition: 800V, 75A, 1Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-264-3, TO-264AA
- Supplier Device Package: TO-264 [L]
