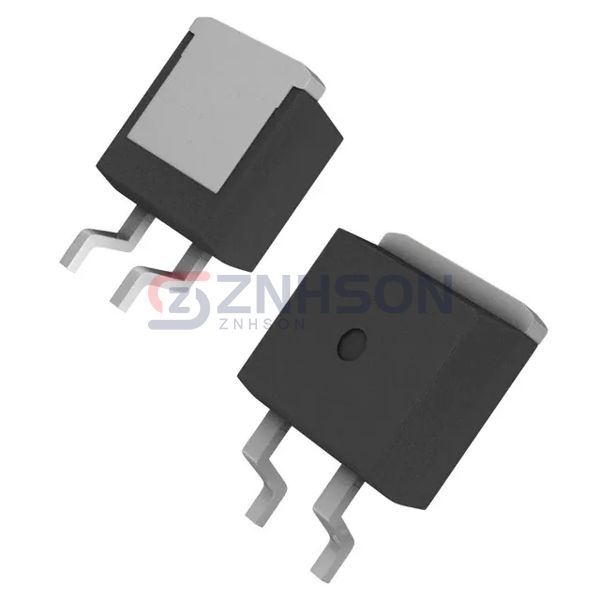

IXGA20N120B3
IXYS
IXYS
IGBT 1200V 36A 180W TO263
$4.83
Available to order
Reference Price (USD)
50+
$4.37060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The IXGA20N120B3 by IXYS is a high-efficiency Single IGBT transistor, part of the esteemed Discrete Semiconductor Products line. With low on-state voltage and high-speed switching, it is ideal for energy-saving applications. Commonly used in electric vehicles, smart grids, and industrial machinery, the IXGA20N120B3 delivers robust performance. IXYS's commitment to quality ensures a product that meets the rigorous demands of modern electronics. Integrate IXGA20N120B3 into your designs for optimal power control.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 36 A
- Current - Collector Pulsed (Icm): 80 A
- Vce(on) (Max) @ Vge, Ic: 3.1V @ 15V, 16A
- Power - Max: 180 W
- Switching Energy: 920µJ (on), 560µJ (off)
- Input Type: Standard
- Gate Charge: 51 nC
- Td (on/off) @ 25°C: 16ns/150ns
- Test Condition: 600V, 16A, 15Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package: TO-263AA
