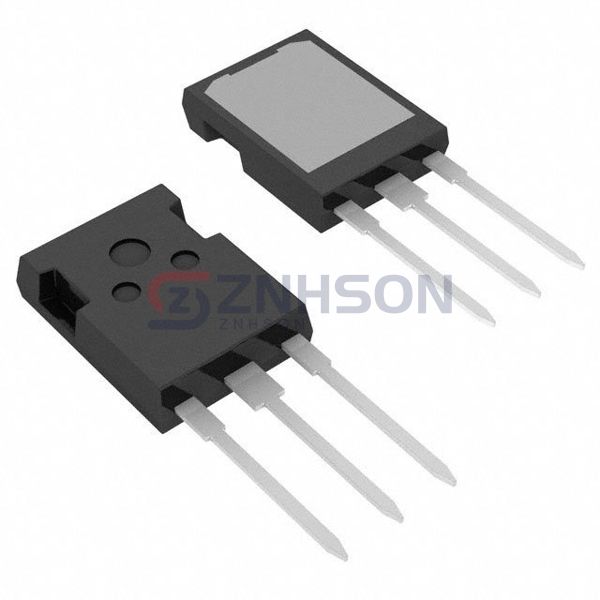

IXGX50N120C3H1
IXYS
IXYS
IGBT 1200V 95A 460W PLUS247
$14.32
Available to order
Reference Price (USD)
30+
$12.72333
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your power management systems with the IXGX50N120C3H1 Single IGBT transistor from IXYS. This Discrete Semiconductor Product boasts high current density and excellent thermal conductivity, making it suitable for high-power applications. From railway systems to wind turbines, the IXGX50N120C3H1 provides reliable and efficient operation. IXYS's advanced semiconductor technology guarantees a component that excels in performance and durability. Choose IXGX50N120C3H1 for your critical power needs.
Specifications
- Product Status: Active
- IGBT Type: PT
- Voltage - Collector Emitter Breakdown (Max): 1200 V
- Current - Collector (Ic) (Max): 95 A
- Current - Collector Pulsed (Icm): 240 A
- Vce(on) (Max) @ Vge, Ic: 4.2V @ 15V, 40A
- Power - Max: 460 W
- Switching Energy: 2mJ (on), 630µJ (off)
- Input Type: Standard
- Gate Charge: 196 nC
- Td (on/off) @ 25°C: 31ns/123ns
- Test Condition: 600V, 40A, 2Ohm, 15V
- Reverse Recovery Time (trr): 75 ns
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3 Variant
- Supplier Device Package: PLUS247™-3
