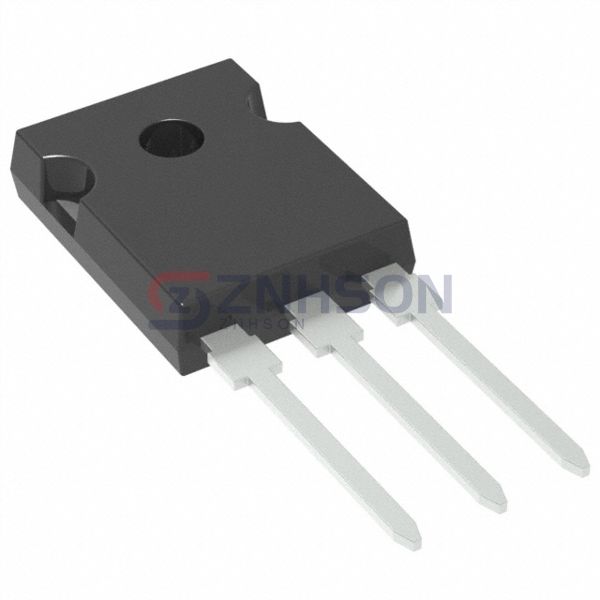

RGCL80TS60GC13
Rohm Semiconductor
Rohm Semiconductor
LOW VCE(SAT) TYPE, 600V 40A, TO-
$5.94
Available to order
Reference Price (USD)
1+
$5.94000
500+
$5.8806
1000+
$5.8212
1500+
$5.7618
2000+
$5.7024
2500+
$5.643
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The RGCL80TS60GC13 from Rohm Semiconductor is a high-performance Single IGBT transistor designed for robust and efficient power management in various applications. As part of the Discrete Semiconductor Products category, this IGBT offers low saturation voltage and fast switching capabilities, making it ideal for high-efficiency power conversion. Its advanced design ensures thermal stability and durability, even under demanding conditions. Common applications include motor drives, solar inverters, and industrial power supplies, where reliable and efficient switching is crucial. Choose RGCL80TS60GC13 for superior performance in your next power electronics project.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 65 A
- Current - Collector Pulsed (Icm): 160 A
- Vce(on) (Max) @ Vge, Ic: 1.8V @ 15V, 40A
- Power - Max: 148 W
- Switching Energy: 1.11mJ (on), 1.68mJ (off)
- Input Type: Standard
- Gate Charge: 98 nC
- Td (on/off) @ 25°C: 53ns/227ns
- Test Condition: 400V, 40A, 10Ohm, 15V
- Reverse Recovery Time (trr): -
- Operating Temperature: -40°C ~ 175°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247G
