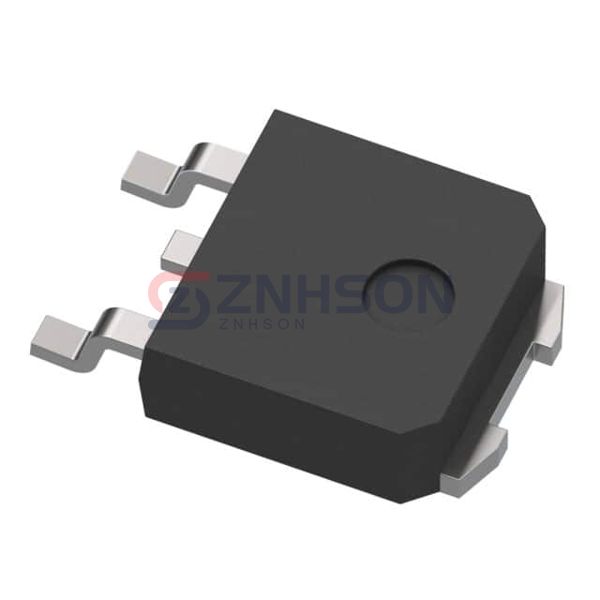

STGD25N40LZAG
STMicroelectronics
STMicroelectronics
POWER TRANSISTORS
$2.16
Available to order
Reference Price (USD)
2,500+
$0.92125
5,000+
$0.89100
12,500+
$0.87450
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGD25N40LZAG by STMicroelectronics is a premium Single IGBT transistor designed for high-power applications. Part of the Discrete Semiconductor Products family, it features fast switching speeds and high input impedance, reducing power loss and improving efficiency. Commonly used in motor control, power supplies, and renewable energy inverters, this IGBT is built to withstand harsh environments. With STMicroelectronics's reputation for quality, the STGD25N40LZAG is a dependable choice for demanding electronic designs.
Specifications
- Product Status: Active
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 435 V
- Current - Collector (Ic) (Max): 25 A
- Current - Collector Pulsed (Icm): 50 A
- Vce(on) (Max) @ Vge, Ic: 1.25V @ 4V, 6A
- Power - Max: 125 W
- Switching Energy: -
- Input Type: Logic
- Gate Charge: 26 nC
- Td (on/off) @ 25°C: 1.1µs/4.6µs
- Test Condition: 300V, 10A, 1kOhm, 5V
- Reverse Recovery Time (trr): -
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: D-PAK (TO-252)
