STGD5H60DF
STMicroelectronics
STMicroelectronics
TRENCH GATE FIELD-STOP IGBT, H S
$1.22
Available to order
Reference Price (USD)
2,500+
$0.51900
5,000+
$0.49590
12,500+
$0.47940
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The STGD5H60DF Single IGBT transistor by STMicroelectronics is a high-performance component in the Discrete Semiconductor Products category. Featuring low switching losses and high reliability, it is perfect for demanding applications like medical imaging, defense systems, and data centers. The STGD5H60DF ensures precise power control and long-term stability. With STMicroelectronics's reputation for excellence, this IGBT is a trusted choice for engineers worldwide. Incorporate STGD5H60DF into your projects for superior results.
Specifications
- Product Status: Active
- IGBT Type: Trench Field Stop
- Voltage - Collector Emitter Breakdown (Max): 600 V
- Current - Collector (Ic) (Max): 10 A
- Current - Collector Pulsed (Icm): 20 A
- Vce(on) (Max) @ Vge, Ic: 1.95V @ 15V, 5A
- Power - Max: 83 W
- Switching Energy: 56µJ (on), 78.5µJ (off)
- Input Type: Standard
- Gate Charge: 43 nC
- Td (on/off) @ 25°C: 30ns/140ns
- Test Condition: 400V, 5A, 47Ohm, 15V
- Reverse Recovery Time (trr): 134.5 ns
- Operating Temperature: -55°C ~ 175°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: DPAK
Related Products
Rohm Semiconductor
RGCL80TS60GC13
STMicroelectronics
STGYA75H120DF2
STMicroelectronics
STGW40H120F2
Harris Corporation
HGT1S15N120C3
Infineon Technologies
IKW75N65ET7XKSA1
Infineon Technologies
SKB15N60ATMA1
IXYS
IXXH110N65C4
Alpha & Omega Semiconductor Inc.
AOT15B65M1
IXYS

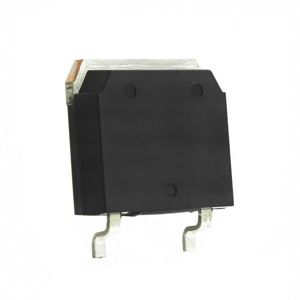

IXA12IF1200TC-TUB
